I.Description

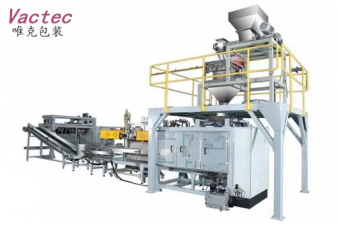

GFCF/25 auto powder bag-feeding packing machine (hereinafter to be referred as GFCF/25) is developed specifically for powder products which made in agro and food industry.GFCF/25 can realize automatic bag-feeding, filling, bag-conveying, sealing/sewing,etc.
II.Technical Parameters
Packing film:PP woven bag,(coatings);
Packing size：（700～850mm）×（400～500mm）[length×width]；
Packing capacity：10~25kg；
Packing speed：4～8bag/min(according to exact material and bag size);
Air source：compressed air0.5～0.7Mpa；
Power: 5.0KW 380V±10%、50HZ；
Appearance size:5860×2500×4140mm（L×W×H）；
Material：non-sticky powdery material
III. Automatic weighing packaging unit including
|
No. |
Equipment name (model) |
Unit |
Q'ty |
|
1 |
WLD25K Auger Filling machine with weighting system made by stainless steel; Twin screw filling system; Tube weighing hopper; Touch screen interface operation; |
set |
1 |
|
2 |
Auto bag feeding and packing machine with control box; Contact parts be made by S.Steel; With functions for automatic bag taking,bag opening, powder filling etc. China Touch Screen & Mitsubishi PLC ;; SMC air Pneumatic; Delta Servo Motor; Conveyor system; |
set |
1 |
|
3 |
Automatic Stitching /sewing machine With sewing machine; Stitching with bag folding;. Single line stitching. Auto Pneumatic cutting. |
Set |
1 |
|
4 |
Plate form(painted steel) |
Set |
1 |
IV.Technical parameters:
|
No. |
Item |
Parameter |
|
Material of premade bag |
Premade bags |
|
|
1 |
Packaging specification |
10kg~25kg |
|
2 |
Max.Speed |
4-8 times/min |
|
3 |
Weighing accuracy |
±2‰ |
|
4 |
Power supply |
380V±10% 50Hz 5.5KW |
|
5 |
Machine weight |
2000kg |
|
6 |
Machine size |
6000*2000*4900mm |
|
7 |
Air supply source |
0.6MPa, 0.5m3/min |
1.The packing machines will be wrapping by film firstly and then packed in export standard plywood wooden cases;
2.We can delivery machines by sea,train,air,etc. According to customer's requirement;
3.We will delivery machine from any sea port in China
|
Efficient Service |
|
|
Documents |
English version manual book and wires connecting drawing will be give at the time of dispatch of machine, we will also offer the documents for custom to clean custom. |
|
Guarantee |
The machine is guaranteed for trouble free performance for a period of 12 months from commissioning. |
|
Service |
We can arrange and send engineer abroad for helping customer install and test and learn the machines, we also send necessary spare parts in first time. |
