I.Description

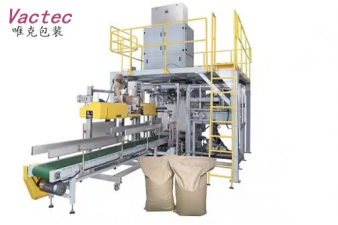

(1) GFCK-25K automatic bag-feeding packing machine is developed specifically for heavey bag of granule products which made in agro and food industry.GFCK-25K can realize automatic weighing,bag-feeding, filling, bag-conveying, sealing/sewing, etc.
(2) Our company new improve the technology, using high speed servo weighing machine instead of normal weighing machine, increase the weighing speed, for 25kg per bag, one set of the weighing machine can stable do 13-15 bags/min, for 50kg per bag, the machine can stable do 8-10 bags /min.
II. Detailed introduction:
|
No. |
Equipment name (model) |
Unit |
Q'ty |
|
1 |
CJD50-S25 high speed servo weighting machine Contact parts are made by stainless steel; Single weighing head; Servo motor controlling the feeding gate; Touch screen for English interface operation. |
Unit |
1 |
|
2 |
Auto bag feeding and packing machine with control box; Contact parts be made by S.Steel; With functions for automatic bag taking,bag opening, powder filling etc. Touch Screen & PLC Siemens; SMC air Pneumatic; Delta Servo Motor; Conveyor system; |
Unit |
1 |
|
3 |
Automatic Stitching /sewing machine With sewing machine; Stitching with bag folding;. Single line stitching. Auto Pneumatic cutting. |
Set |
1 |
|
4 |
Plat form(painted steel). For weighing machine supporting With guardrail and sloping ladder; Made by painted steel. |
Set |
1 |
III. Technical Parameters
|
No. |
Item |
Parameter |
|
Material of premade bag |
PP Woven bag |
|
|
1 |
Packaging products |
Granules |
|
2 |
Speed |
8-12bags/min(10-25kg per bag); |
|
3 |
Weighing accuracy |
±0.1- 0.2%; |
|
4 |
Power supply |
380V±10% 50Hz 5.5KW |
|
5 |
Machine weight |
2000kg |
|
6 |
Machine size |
6000*2000*4900mm |
|
7 |
Air supply source |
0.6MPa, 0.5m3/min |
IV.Working progress:
Material lift （DT2 hopper type of elevator →CJD50K-S25 high speed servo filling and weighting machine→ Automatic bag feeding &material auto filling→Bag automatic transferred by the conveyor→Auto bag folding andsewing→Finished bag
1.The packing machines will be wrapping by film firstly and then packed in export standard plywood wooden cases;
2.We can delivery machines by sea,train,air,etc. According to customer's requirement;
3.We will delivery machine from any sea port in China
|
Efficient Service |
|
|
Documents |
English version manual book and wires connecting drawing will be give at the time of dispatch of machine, we will also offer the documents for custom to clean custom. |
|
Guarantee |
The machine is guaranteed for trouble free performance for a period of 12 months from commissioning. |
|
Service |
We can arrange and send engineer abroad for helping customer install and test and learn the machines, we also send necessary spare parts in first time. |
