I.Introduction:

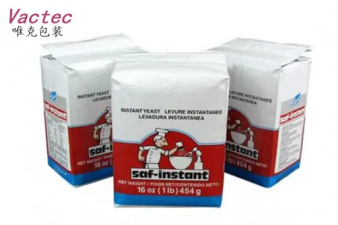

This machine including one set VFS5000F vertical bag making packing and sealing machine .one set CJS2000 Auger measuring machine ,One set ZB500N/ZB500N2 vacuum packing machine , one set output conveyor .This machine are widely use for packing food pharmacy chemical and other product in powder or small granule. Like coffee powder ,yeast powder and so on .The whole machine adopting inside pumping to vacuum product .The vacuum degree is very high and packing speed is very high ,the finished product is very nice and have a long shelf life.

II.The complete unit includes:

1)CJSL2000 Auger measuring machine :

Application:

CJSL2000 auger filler can be used semi-automatic for filling powder in bags, bottles, jars and boxes. Also it can be work with the VFS series vertical packaging machine to realize automatic powder material weighing ,filling and packaging

Advantage:

2）VFS5000F vertical bag making packing and sealing machine

Advantage:

²  Machine fully controlled by Siemens or Omron PLC & Touch-Screen

²  Minute capacity can  automatically display on Touch screen

²  Film transport system derived by Panasonic servo motor;

²  horizontal Jaw sealing derived by pneumatic

²  Safe quick change of tube and collar by just pull out the bracket

²  Optoelectronics detect film position on collar to correct film excursion

²  Electrical photo sensor inducting color code to control bag length

²  Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting

²  independent temperature adjustment.

²  Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PE  PE/NYLON, aluminum foil based can be run on the machine.

²  Minimum Capacity: depend on product characteristics but nominally 100 grams

²  Weighing accuracy: ±0.2% dependent on products characteristics

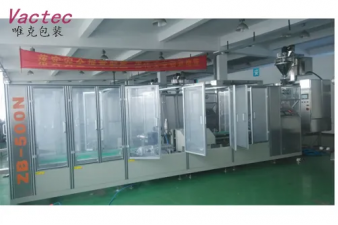

3）ZB500N/ZB500N2 Vacuum system

III.Technical prameters:

Model :ZB500N/ZB500N2

Meter products:coffee powder

Packing speed :15-20bags/min for ZB500N single chamber vacuum machine;

30-35bags/min for ZB500N2 double chamber vacuum machine;

Bag dimension :According client bag sample

Machine dimension:8800*3800*4080mm

Power :15.2kw

IV. Configuration List
