Automatic pouch brick bag Vacuum Packaging Machine
  • Description
  • Package&shipping
  • Our Service
  • Company Information

I.Introduction:

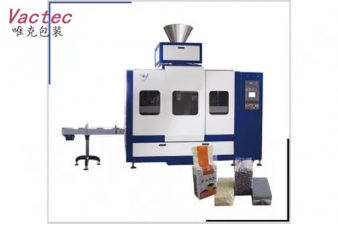

The ZB2500AG6 automatic brick type bag vacuum packaging machine integrates functions of automatic bag-given, bag-opening ,rice filling ,bag-shaping and vacuum sealing and packaging,taking-out in to one,quantitative vacuum packaging for granular materials in rice, miscellaneous grains, food and other industries.

II.Features:

1. Configure automatic bagging robot to realize automatic vacuum plastic packaging, weighing, bagging, six sides;

2. Automatic control of shaping, vacuuming, heat sealing, unloading and finished product transportation;

3. Double station bagging, double station vacuum shaping design, rotating vertical feeding mechanism, vacuum packaging work high speed;

4. wide-capacity shaping mechanism, adapt to thick and thin packaging, good shaping effect, large packaging range;

5.using high-precision alloy steel sensor, pneumatic and vibration feeding mechanism, weighing speed, packaging precision

High degree;

5. using color display touch screen, Siemens programmable controller, touch screen intelligent weighing module.

III.Technical Parameters:

Vacuum degree:-0.0Mp~-0.07Mp(adjustable)

Packing range:0.25g~5kg

Filling accuracy:5g

Packing speed:0.5~2kg,700~800bags/hour

5kg,500~600bags/hour

Bag type:brick type bag

Power:AC380V,50Hz,2.5KW

Air source:0.6Mpa  4m3/h

Machine dimension:L2440*W2445*H2908mm

Material: parts contact with material are made by s.s304, other parts are made by carbon steel with paint.

IV.Configuration List

No.

Components

Brand

1

PLC

Germany Siemens

2

PLC expansion module

Germany Siemens

3

Touch screen

Germany Ziehl

4

Switch power

Taiwan Mingwei

5

Switch button

France Schneider

6

Air switch/ AC contactor

France Schneider

7

Electric vacuum gauge

Taiwan Jingdeng

8

Limit switch

Japan OMRON

9

Terminal

Germany Phoenix

10

Pneumatic components

Taiwan Airtac

11

Vacuum pump

Germany Becker

1.The packing machines will be wrapping by film firstly and then  packed in export standard plywood wooden cases;

2.We can delivery machines by sea,train,air,etc. According to customer's requirement;

3.We will delivery machine from any sea port in China

Efficient Service

Documents

English version manual book and wires connecting drawing will be give at the time of dispatch of machine, we will also offer the documents for custom to clean custom.

Guarantee

The machine is guaranteed for trouble free performance for a period of 12 months from commissioning.

Service

We can arrange and send engineer abroad for helping customer install and test and learn the machines, we also send necessary spare parts in first time.

Hefei Vactec Packaging Technology Co., Ltd is located in the famous science and education city-Hefei. Our company is a high-tech company specialized in the R&D, production ,sales and after-sales service automatic packing machines and relative auxiliary equipments in China.



Vactec sets up six professional divisions: vertical packaging machinery, bag-feeding packaging machine, automatic weighing machine, vacuum packaging machine, inspection machinery and filling machinery. The machines are widely used in chemical, building material, food ,beverage, beer and automatic logistic industries.



Through these years development, Vactec various technology are improving daily. Especially the technology of heavy bag packaging machine and secondary packaging machine is the domestic original technology, its products stay at the world leading level and has signed global purchase strategic plan with several world top 500 enterprises, has provided nearly one hundred sets of packaging solutions and its products are used in various sectors. Its typical customers are: Unilever (OMO), P & G, Charoen Pokphand Group, Liby Group, Industrias Alimenticias Gustossi Srl Group, UCI Indonesia salt company, Yihai Grain and Oil, COFCO, Dongfang Yuhong Technology Co., Ltd., Taetee Group, Sinopec Baling Branch, Zhengzhou Sanquan Foods, Shuanghui Co., Ltd., etc.
