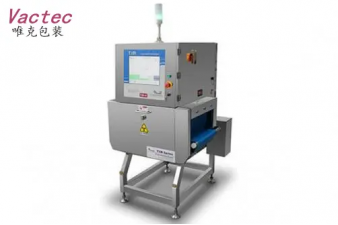

X-Ray Inspection Machine
  • Description
  • Package&shipping
  • Our Service
  • Company Information

I. Introduction:

·      1.High Performance and Stability XR Series X-ray Inspection System

·      2.A full range of contaminants inspection including metallic, non-metallic contaminants ( Glass, Ceramic, Stone, Bone, Hard Rubber, Hard Plastic , etc.). It can inspect metallic, non-metallic packaging and canned goods, and the inspection effect will not be affected by temperature, humidity, salt content and etc.

·      3.The X-ray inspection system is suitable for the inspection of metallic and non-metallic contaminants, defects etc in Food, Chemical, Pharmaceutical Industries.



II. Technical Parameters

Model

XR Series

Specifications

2480

4080

4080S

4080SL

4080SH

5080S

5080SH

6080SH

X-ray Tube

MAX. 80kV, 150W

MAX.80kV,210W

MAX. 80kV,350W

Inspection Width

240mm

400mm

500mm

600mm

Inspection Height

110mm

160mm

100mm

220mm

160mm

250mm

300mm

Best Inspection Ability

SUS Ball: Φ0.3mm

SUS Wire:0.2*2mm

SUS Ball:Φ0.4mm,

SUS Wire:0.2*2mm

Conveyor Speed

10-70m/min

10-40m/min

Display Screen

Full-color TFT 15" Touch Screen

O/S

Window XP Professional

Connectivity

LAN port, USB port

Product Management

Complete Product Log

Parameter Adjustment

Auto setting/Manual learning

Image Management

Image Save/Print/Analysis

Power Supply

AC220V (Optional)

Main Material

SUS304

Purification

Easy to Wash

Temperature Adjustment

Industrial Air Condition

X-ray Leakage

< 1 microsievert per hour

Protection Mode

Removable Protective Curtain

1.The packing machines will be wrapping by film firstly and then  packed in export standard plywood wooden cases;

2.We can delivery machines by sea,train,air,etc. According to customer's requirement;

3.We will delivery machine from any sea port in China

Efficient Service

Documents

English version manual book and wires connecting drawing will be give at the time of dispatch of machine, we will also offer the documents for custom to clean custom.

Guarantee

The machine is guaranteed for trouble free performance for a period of 12 months from commissioning.

Service

We can arrange and send engineer abroad for helping customer install and test and learn the machines, we also send necessary spare parts in first time.

Hefei Vactec Packaging Technology Co., Ltd is located in the famous science and education city-Hefei. Our company is a high-tech company specialized in the R&D, production ,sales and after-sales service automatic packing machines and relative auxiliary equipments in China.



Vactec sets up six professional divisions: vertical packaging machinery, bag-feeding packaging machine, automatic weighing machine, vacuum packaging machine, inspection machinery and filling machinery. The machines are widely used in chemical, building material, food ,beverage, beer and automatic logistic industries.



Through these years development, Vactec various technology are improving daily. Especially the technology of heavy bag packaging machine and secondary packaging machine is the domestic original technology, its products stay at the world leading level and has signed global purchase strategic plan with several world top 500 enterprises, has provided nearly one hundred sets of packaging solutions and its products are used in various sectors. Its typical customers are: Unilever (OMO), P & G, Charoen Pokphand Group, Liby Group, Industrias Alimenticias Gustossi Srl Group, UCI Indonesia salt company, Yihai Grain and Oil, COFCO, Dongfang Yuhong Technology Co., Ltd., Taetee Group, Sinopec Baling Branch, Zhengzhou Sanquan Foods, Shuanghui Co., Ltd., etc.
