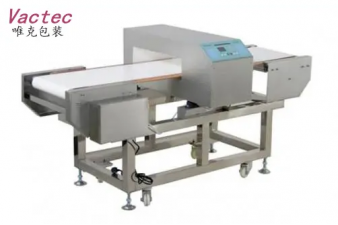

I.Introduction:
1.Digital processing to received signal with advanced microcomputer, to improve detecting accuracy.
2.Has memory function, could remember twenties productions’ checking values.
3.Human-nature operation interface can be set simple and convenient.
4.Made by stainless material, high quality.
5.Conform to GMP, HACCP standard.
6.Suitable for detecting small metal materials such as iron, copper, aluminum and stainless inside production in textile, toys, foodstuff, medicine industries, etc. Can detect many type objects, such as bags, bottles, carton boxes, etc.
Note: in general, the detecting sensitivity varies with the height of detecting window; changers of detected material, shape, detecting environment and position of detected object will lead to difference of the detecting sensitivity.
I.Introduction:
1.Digital processing to received signal with advanced microcomputer, to improve detecting accuracy.
2.Has memory function, could remember twenties productions’ checking values.
3.Human-nature operation interface can be set simple and convenient.
4.Made by stainless material, high quality.
5.Conform to GMP, HACCP standard.
6.Suitable for detecting small metal materials such as iron, copper, aluminum and stainless inside production in textile, toys, foodstuff, medicine industries, etc. Can detect many type objects, such as bags, bottles, carton boxes, etc.
Note: in general, the detecting sensitivity varies with the height of detecting window; changers of detected material, shape, detecting environment and position of detected object will lead to difference of the detecting sensitivity.
II.Technical Information:
|
Model |
Chanel size |
Belt speed |
Reject type |
Sensitivity |
Loading |
|
JST4020 |
400mm(Width)*200mm(Height) |
25m/min |
Alarm light with belt stop |
Fe≥φ1.0 mm S.S 304:≥φ2.0 mm |
Max 2kg |
|
JST5030 |
500mm(Width)*300mm(Height) |
20m/min |
Fe≥φ1.5 mm S.S 304:≥φ2.5 mm |
Max 5kg |
|
|
JST6040 |
600mm(Width)*400mm(Height) |
15m/min |
Pneumatic |
Fe≥φ2.0 mm S.S 304:≥φ3.5 mm |
Max 25kg |
1.The packing machines will be wrapping by film firstly and then packed in export standard plywood wooden cases;
2.We can delivery machines by sea,train,air,etc. According to customer's requirement;
3.We will delivery machine from any sea port in China
|
Efficient Service |
|
|
Documents |
English version manual book and wires connecting drawing will be give at the time of dispatch of machine, we will also offer the documents for custom to clean custom. |
|
Guarantee |
The machine is guaranteed for trouble free performance for a period of 12 months from commissioning. |
|
Service |
We can arrange and send engineer abroad for helping customer install and test and learn the machines, we also send necessary spare parts in first time. |
Hefei Vactec Packaging Technology Co., Ltd is located in the famous science and education city-Hefei. Our company is a high-tech company specialized in the R&D, production ,sales and after-sales service automatic packing machines and relative auxiliary equipments in China.
Vactec sets up six professional divisions: vertical packaging machinery, bag-feeding packaging machine, automatic weighing machine, vacuum packaging machine, inspection machinery and filling machinery. The machines are widely used in chemical, building material, food ,beverage, beer and automatic logistic industries.
Through these years development, Vactec various technology are improving daily. Especially the technology of heavy bag packaging machine and secondary packaging machine is the domestic original technology, its products stay at the world leading level and has signed global purchase strategic plan with several world top 500 enterprises, has provided nearly one hundred sets of packaging solutions and its products are used in various sectors. Its typical customers are: Unilever (OMO), P & G, Charoen Pokphand Group, Liby Group, Industrias Alimenticias Gustossi Srl Group, UCI Indonesia salt company, Yihai Grain and Oil, COFCO, Dongfang Yuhong Technology Co., Ltd., Taetee Group, Sinopec Baling Branch, Zhengzhou Sanquan Foods, Shuanghui Co., Ltd., etc.
