I. Introduction:

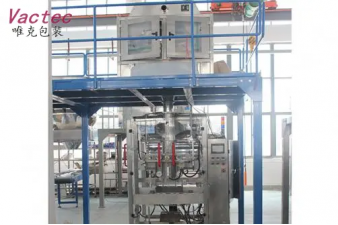

1. This unit is for granule products automatic bag making, material weighing & Filling, sealing, date coding etc. Including bellowing machines:

1)Bucket elevator for Material feeding;

Stainless Steel material, automatic feeding.Equips level switch and control box.

2) CJ series linear weigher;

It is suitable for high speed weighing of granules,such as rice, seeds, beans, corns,sugar,etc.

Features:
*Load cell level sensor control material feeding;
*No products Auto pause function can avoid material dropping out during Running;
*According to customer's capacity, can equipped with 2 heads, 4heads and 6 heads weighing heads;
* Controlled by high accuracy load cell and weighing control moudel;
* Multilanguage control panel, Spanish, Korea, German, French and Arabic, etc.
* High accuracy and high speed modes can be select..

3)Supporting platform with guardrail & Ladder;

Made by carbon steel or Stainless steel ,with guardrail and ladder

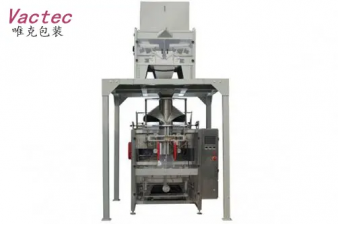

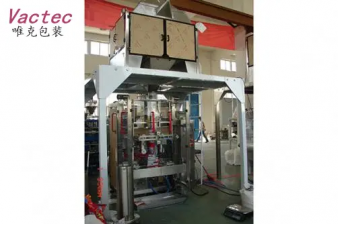

4)VFFS series bagging machine;

This machine equips with bag-making,cutting,code printing,etc.to make pillow bag .OMROM PLC,TAIWAN Touch Screen，PANASONIC servo morto, Japanese Photo Sensor, Korean Air valve,etc. Stainless Steel for body.

5)Take off conveyor belt.

Made by Stainless Steel. 1.95m for the length.

II.Application

III.Technical information:

Note:

CJF200 Linear weigher; 10g-200g; 4 head;

CJF2000 Linear weigher; 50g-2000g; 4 head

CJF5000 Linear weigher; 200g-5000g; 4 head

S15 Linear weigher; 5kg-15kg; 2head

S25 Linear weigher; 10kg-25kg; 2 head;
