I. Introduction:

This unit is for granule products automatic bag making, material weighing & Filling, sealing, date coding etc. Including bellowing machines:

1)Bucket elevator for Material feeding;

Stainless Steel material, automatic feeding.Equips level switch and control box.

2)ZH multihead series/ CJ series linear weigher;

Fourteen working heads, made by S.Steel, the volume of the weighing bucket is 1.6L.

*Application:
It is suitable for high speed weighing of granule, slice, roll or irregular shape  products such as candy, seed, jelly, fries, coffee bean, peanut, puffy food, biscuit, chocolate, nut, yogurt, pet food & frozen foods, etc. It is also suitable for weighing small metal and plastic parts.

*Features:
*Load cell level sensor control material feeding;
*No products Auto pause function can avoid material dropping out during Running;
*The single linear feeder amplitude can be auto/manual adjusted will ensure the products easy-flowing with high accuracy;
* Facility to maximize or minimize the operation angle to the size of the product.
* Multilanguage control panel, Spanish, Korea, German, French and Arabic, etc.
* High accuracy and high speed modes can be select.

3)Supporting platform with guardrail & Ladder;

Made by carbon steel or Stainless steel ,with guardrail and ladder

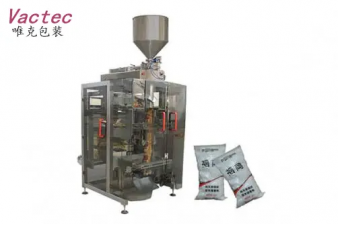

4)VFFS series bagging machine;

This machine equips with bag-making,cutting,code printing,etc.to make pillow bag .OMROM PLC,TAIWAN Touch Screen，PANASONIC servo morto, Japanese Photo Sensor, Korean Air valve,etc. Stainless Steel for body.

5)Take off conveyor belt.

Made by Stainless Steel. 1.95m for the length.

II.Application:

III.Technical information:

Note:

ZH10 Multihead combination weigher: 10g-1000g, 10head

ZH14 Multihead combination weigher: 10g-1500g; 14 head;

ZH20 Multihead combination weigher: 10-1000g;20 head

CJF200 Linear weigher; 10g-200g; 4 head;

CJF2000 Linear weigher; 50g-2000g; 4 head

CJF5000 Linear weigher; 200g-5000g; 4 head

S15 Linear weigher; 5kg-15kg; 2head

S25 Linear weigher; 10kg-25kg; 2 head;
