I. Introduction:

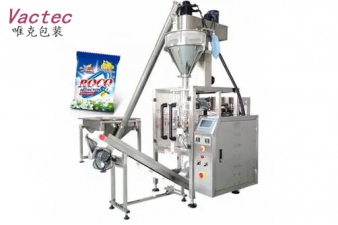

This unit is for powder products automatic bag making, material weighing & Filling, sealing, date coding etc. Including bellowing machines:
➪ Incline screw elevator with hopper;
Contact parts made of S.S304, automatic feeding. Equips level switch and control box.
➪ CJSL series auger filler;
This machine equips Panasonic Servo Motor, level switch and mixture motor automatic filling, controlled by packaging machine. Contact parts made of S.S304
➪ VFFS series bagging machine;
This machine equips with bag-making,cutting,code printing,etc.to make box bag .OMROM PLC,TAIWAN Touch Screen，PANASONIC servo motor, Japanese Photo Sensor,Korean Air valve,etc. Stainless Steel for body. The packing machine includes one set Hot foil batch coding unit. Contact parts made of S.S304
➪ Take off conveyor belt.
Made by Contact parts made of S.S304
II.Application:
III.Technical information:
|
Model |
Filler/Dosing system |
Bag type/ Bag Material |
Roll Film width |
Bag size:(mm) |
Packaging speed |
|
VFS320 |
CJSL200 |
Pillow/gusset type bag; LDPE/ Laminated Roll film |
Max 320mm |
W(60-150)*L(80-180) |
Max 70BPM |
|
VFS420D |
CJSL2000 |
Max 420mm |
W(80-200)*L(80-280) |
Max 70BPM |
|
|
VFS540B |
CJSL2000 |
Max 540mm |
W(120-260)*L(80-340) |
Max 50BPM |
|
|
VFS730B |
CJSL2000/CJSL5000 |
Max 730mm |
W(150-350)*L(120-460) |
Max 50BPM |
|
|
VFS780B |
CJSL5000 |
Max 780mm |
W(150-375)*L(120-460) |
Max 40BPM |
|
|
VFS1100 |
CJL25K |
Max 1100mm |
W(300-535)*L(300-650) |
Max 10BPM |
|
|
VFS1500 |
CJL25K |
Max 1500mm |
W(350-725)*L(300-900) |
Max 8BPM |
|
|
VFSH540 |
CJSL2000 |
Quad/Pillow Bag. Laminated roll film |
Max 540mm |
Front width: 50-190; Side width: 35-90; Edges seal:5-8; bag length:120-340; |
Max 50BPM |
|
VFSH730 |
CJSL2000/CJSL5000 |
Max 730mm |
Front width: 60-260; Side width: 45-120; Edges seal:5-8; bag length:120-460; |
Max 50BPM |
|
|
VFS540G |
CJSL2000 |
Pillow bag/ Laminated roll film |
Max 540mm |
W(120-260)*L(80-340) |
Max 120BPM |
Note:
CJSL200 Auger filler: 20g-200g;
CJSL2000 Auger filler: 50g-2000g;
CJSL5000 Auger filler: 500g-5000g;
1.The packing machines will be wrapping by film firstly and then packed in export standard plywood wooden cases;
2.We can delivery machines by sea,train,air,etc. According to customer's requirement;
3.We will delivery machine from any sea port in China
|
Efficient Service |
|
|
Documents |
English version manual book and wires connecting drawing will be give at the time of dispatch of machine, we will also offer the documents for custom to clean custom. |
|
Guarantee |
The machine is guaranteed for trouble free performance for a period of 12 months from commissioning. |
|
Service |
We can arrange and send engineer abroad for helping customer install and test and learn the machines, we also send necessary spare parts in first time. |
