I.Introduction:

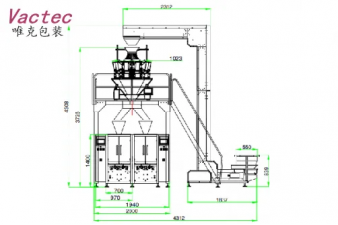

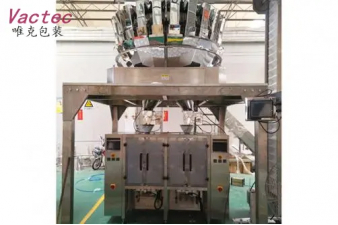

This unit is consist of one set bucket elevator for material feeding, one set 20 heads combined weighing machine and one set duplex type VFS5000D vertical packing machines ,two sets platform and two sets take-off belt conveyors. This packing unit increase packing speed and effcient. Widely used in food, agriculture,chemical industrial file.

II. Working progress

Bucket elevator feeding the material to 20 head combined weighing machine through the fork mechanism at same time——20 head combined weighing machine automatic weighing and filling at target weight——VFS5000D duplex type packing machine realize functions of bag-making ,filling ,sealing, date printing, cutting ,etc at same time——finished bags will be conveyed out by belt conveyor at same time.

III. Machines Features:

1.   Duplex VFS5000D auto packaging machine one set.

This machine equips with bag-making,cutting,code printing,etc.to make Pillow/Gusset bag .OMROM PLC, TAIWAN Touch Screen，PANASONIC servo motor, Japanese Photo Sensor, SMC pneumatic,etc. Stainless Steel for body.

2. 20 head combined weighing machine

Application: 3 working modes

a) Mode 0: Integrate with twin VFFS machine: refers to individual A, B weigher running with separate VFFS machines, the output of A, B request dump signal and discharged signal was control separately.

b) Mode 1: Integrate with a high speed VFFS machine: A, B weigher integrate with a high speed VFFS machine, A signal control A & B weigher working alternately, ready weigher will dump first and then the other go head continuously. B signal is not working. Max speed: 130bpm

c) Mode 2: mixture weighing. Weighing 2 different products separately and drop to a VFFS machine for mixture. A signal control request and dump signal, B signal is not working.

ii. Features:

a)       New high integration A/D modular adopts CAN bus technology, more efficient and stable;

b)      Apply with standard industrial control panel;

c)       High speed asynchronous dump function;

d)      200g or 1000g calibration is available;

e)       Select and check different program on running menu without password, user-friendly;

f)       Intelligent alarm diagnosis indicate failure correctly and timely, which will save users’ time to solve problem;

g)      High modular design ensure easier for maintenance, test and installation.

iii. Specifications:

  3.DT5 bucket elevator

 Made by Stainless Steel, equips with vibration feeder and level switch, automatic feeding

4.Production take-off conveyor belt two sets.

Made by Stainless Steel. 1.6m for the length.

IV. Technical Parameters:

Technical information:

Bag material: laminated roll film;

Bag type: pillow or gusset type bag.

Bag size:(50mm-280mm)*(70mm-180mm)(L*W);

Weighing range: 10g—500g;

Packaging speed: 100-120 bags/min(according the packaging weight and the bag size );

Accuracy: 0.5g-1g (according the packaging weight and the bag size );

Power supply: AC380V, 3Phase, 50Hz, 10KW;

Compressed air requirement: 0.6M3/Min, 0.6MPa;
