I. Introduction:

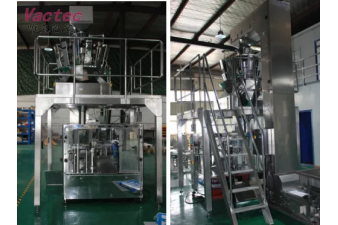

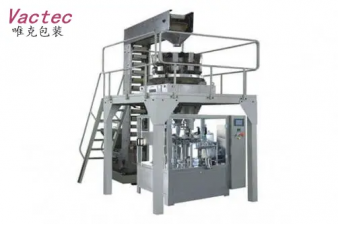

This unit is for granule products automatic material weighing & Filling,bagging, date coding for Preformed Pouches etc.

Including bellowing machines:

1)Bucket elevator for Material feeding ;

Elevating height: 4 meter
Capacity: 3-6CBM/hour

Material of bucket:  ABS food grade plastic

Motor power: 1.1kw 380v with Photo electricity
Machine-material: Stainless,steel, plastic

2)ZH series/ CJ series weigher;

1,Original program can be restored.2,Easy cleaning and maintenance with clean function, all hoppers can stay open3,Piece counting function

4,IP65 certificate

5,Unqualified weight reject

6,Step motor angle can be set according to different product

7,99 program can be preset

8, Stagger dump prevents products blockage

Special Features:

1,Modular electronic system makes function expanding and maintenance easier and at lowest cost

2,Professional A/D card with high accuracy and stability. Interchange is available

3,HMI program with different authority management more user-friendly

4,HMI program can be upgraded by U-disk

3)Supporting platform with guardrail & Ladder;

Made by carbon steel or stainless steel, with guardrail and ladder

4)ZR series Rotary bagging machine;

Function and characteristics

1 、Easy to operate，adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.

2 、Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production

3、Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.

4 、Safety device: Machine stop at abnormal air pressure, heater disconnection alarm。

5 、Horizontal conveyer style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.

II. Application

III.Technical Parameters

Note:

ZH10 Multihead combination weigher: 10g-1000g, 10head

ZH14 Multihead combination weigher: 10g-1500g; 14 head;

CJF2000 Linear weigher; 50g-2000g; 4 head
