I.Introduction:

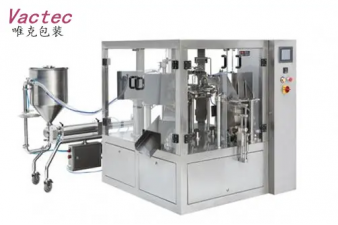

This unit is for Paste liquid products automatic material weighing & Filling,bagging, date coding for Preformed Pouches etc. Including bellowing machines:
●Material feeding pump;

Made in 304 .S.S

Suitable for oil feeding,with level sensor to control oil feeding automatically

●Rotary pump filler;

Servo motor drives rotor pump.

Products contact parts: 304 S.S

With Hopper for products storage.

Filling Range:  200ml-1000ml

Weight Accuracy: +/- 0.5%

Speed: 25-50bpm

With prevent oil dropping system

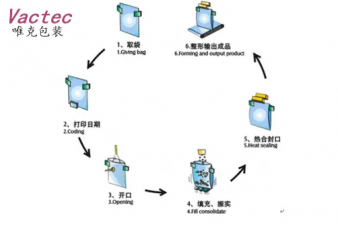

●ZR series Rotary bagging machine;

Function and characteristics

1 、Easy to operate，adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.

2 、Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production

3、Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.

4 、Safety device: Machine stop at abnormal air pressure, heater disconnection alarm。

5 、Horizontal conveyer style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.

6 、 The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.

7 、It match with the glass safety door. At the same time, it could prevent dust.

8 、Use the plastic bearing, don’t need put on oil, less pollution.

9 、Use no oil vacuum pump, avoid polluting the environment in the production.

10、. The opening zipper framework is special in the feature of zipper bag,it can avoid distortion or destroy when open the zipper

11、The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification

12、Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food

●Take off conveyor belt.

II.Application

III.Technical Parameters

Note:GZ1000/GZ2000: Rotary pump/Piston Pump Filler
